Kinan KFH268S Dual View HDMI® KVM Extender over Cat5/Fiber
Product Description

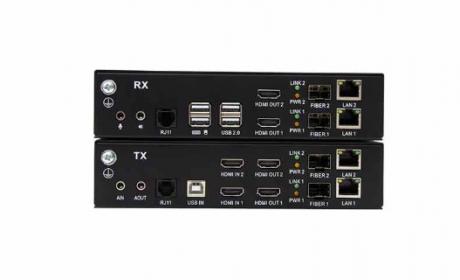

Kinan KFH268S HDMI dual view KVM extender over fiber/cat5 consists of a transmitter unit (KFH268S-TX) and a receiver unit(KFH268S-RX), supporting transmitting 2-channel video, mouse, keyboard, USB2.0 and other signals of the servers via optical fiber or Cat5 cables. This HDMI extender is used to extend the signals of the servers in the remote server room so that the users can control devices remotely.
KFH268S supports single mode and multi-mode optical fibers. As for the transmiiting distance, the maximum transmitting distance of single mode is 80km, and that of the multi-mode is 150m.
Key Features
- HDMI / USB2.0 – HDMI KVM extender.
- Hardware: Consists of a transmitter and a receiver.
- Number of Screens: 2
- Ultra-low Latency: Support lossless transmissions with ultra-low latency, about 1 frame delay (16ms@60fps).
- High Resolution: The HDMI high-definition video transmission is up to 3840 x 2160@30Hz, and the recommended resolution is 1920 x 1080@60Hz.
- Transmission: Support transmission through fiber optic and Cat5 and support USB2.0 transparent transmission.
