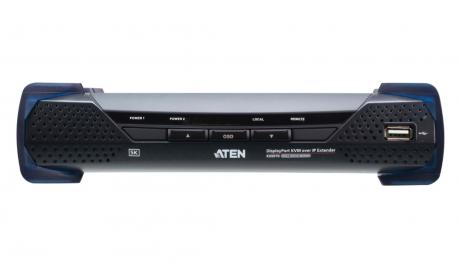

Aten KX9970 ( KX9970T & KX9970R)

The KX9970 5K DisplayPort Single Display KVM over IP Extender consists of a high performance IP-based transmitter (KX9970T) and a receiver (KX9970R), where the transmitter can transmit a computer’s keyboard, video, mouse, and USB signals to the receiver for providing separate console accesses from both the transmitter’s and receiver’s locations. The setup allows extended access to computer systems via a USB console (USB keyboard, USB mouse, DisplayPort monitor) over Intranet, enabling users to place the computers in secure and temperaturecontrolled environments, which may be isolated from the user workstation.

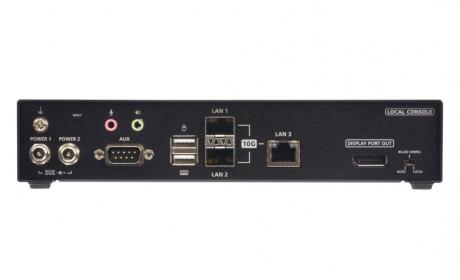

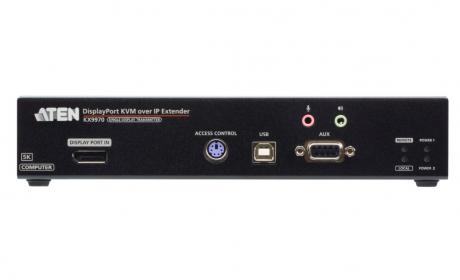

The KX9970each supports one DisplayPort video display for delivering video resolutions of up to 5K (5120 x 2880 @ 30 Hz), and offers flawless and lossless video quality with zero latency. Each KX9970 extender model is equipped with one RJ-45 port and two SFP+ slots. 10-Gbps SFP+ fiber module expansions are supported for fiber optic network connections and a transmission distance of up to 10 km. For connection flexibility, both the KX9970 transmitter and receiver models can be connected either directly to each other or via a high-speed network over a copper-based or fiber-based LAN. The KX9970 also features dual power supply capability for power redundancy to ensure reliable services. The KX9970 can be set up at the workstation, mounted onto a wall or at the rear of a rack with its space-saving 0U rack-mount design.
