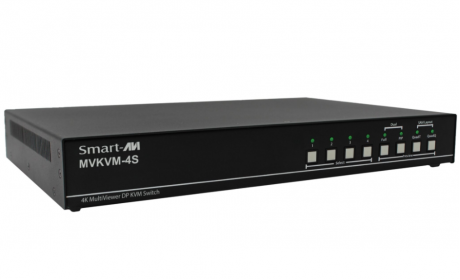

Smart AVI MVKVM-4S Multiviewer
Product Description
The MVKVM-4S is a 4-port DisplayPort KVM switch and multiviewer built for professionals who need real-time control over multiple computers from a single console. Connect up to four computers and view all sources simultaneously on one monitor, switching instantly via front panel buttons, keyboard hotkeys, or RS-232 API commands.
Supporting 4K resolution at 60Hz, the MVKVM-4S offers five configurable display modes: Fullscreen, Quad, Dual, Picture-in-Picture, and Free Mode. These options allow custom layout configuration on the fly. An embedded web UI and on-screen display (OSD) provide full layout and EDID management without disrupting connected systems.
Key Features
- Seamless 4K@60Hz multiviewer
- Custom layout configuration
- Control up to four computers with one keyboard, mouse, and monitor
- EDID retention keeps monitor settings intact
- USB keyboard and mouse emulation
- Independent USB 2.0 channels for peripherals
- Front panel, hotkey, web, and RS-232 switching
- Stereo audio support
- Flash-upgradable firmware
