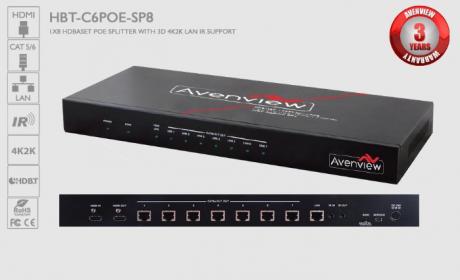

Avenview HBT-C6POE-SP4/8
Product Description
The Avenview HBT-C6POE-SP4/8 HDBaseT 1×4/8 HDMI CAT5/6/7 Splitter with PoE, Bi-directional IR and Ethernet has been design to extend 4K2K (Ultra HD), 1080p (Full HD), 3D video and multi-channel digital audio formats to (4/8) four/eight Monitors. The bonus features with this device it can support PoE (Power over the CATx cable to the RX) also Internet (100Mbps Ethernet service when connected to a Router). These features has been added to this unit to give the installer and user a complete solution with the new trends in online streaming, network connected devices and new demand in Smart TV, Ultra HD monitors and content.
Key Features
- INPUT: HDMI with 3D & 4Kx2K, 1080p, HDCP and DVI compliant source devices
- DATA RATE: from 250Mbps up to 3Gbps
- PC RESOLUTIONS: up to VGA to WUXGA
- HD RESOLUTIONS: up to 4Kx2K (3840×2160@30Hz and 4096×2160@24Hz)1080p (1920×1080@60Hz)
- AUDIO SUPPORTED: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- AUDIO TRANSMISSION: (32-192kHz sample rate)
- DISTANCE up to 100 meters through CAT6e/6a/7 cables
- ETHERNET TRANSMISSION: rate up to 100Mbps
- MODE: Standard 1080p@60Hz or TV EDID timing
- SERVICE: USB for Manufacturer USE ONLY
- 3D SUPPORT: Follow by Display / TV’s EDID
- POE SUPPORT: ONLY with capable Receiver (Rx units)
- IR CONTROL: Bi-directional IR Control
- HDCP COMPLIANCE: Yes 1.4
- DATA RATE: 250Mbps up to 3Gbps
- PC RESOLUTIONS: VGA to WUXGA (1920×1200)
- VIDEO RESOLUTIONS: 480i / 480p / 720p / 1080i / 1080p60 4Kx2K (3840×2160@30Hz and 4096×2160@24Hz)
- AUDIO SUPPORTED: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- AUDIO TRANSMISSION: (32-192kHz sample rate)
- INPUT CONNECTORS: 1 x HDMI1 x IR IN, 1 x LAN*, 1 x USB (Service only)
- OUTPUT CONNECTORS: 1 x HDMI (Local Out) 7 x CAT5e/6/7 1 x IR OUT
- POWER SUPPLY: 24V/6.25 DC (US/EU STANDARD CE FCC UL CERTIFIED)
