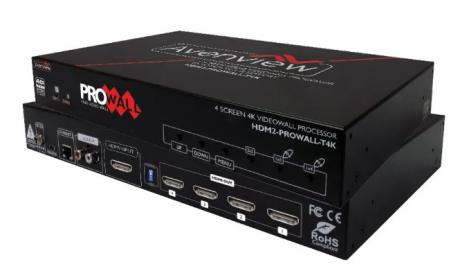

Avenview HDM2-PROWALL-T4K
Product Description
The Avenview HDM2-PROWALL-T4K 4 port HDMI video wall processor with UHD 4K@60 4:4:4 support, its one of the first videowall processor to accept an input of up to TRUE 4K@60 from a source device. Equipped with 4 four HDMI outputs processing the input signal pixel to pixel with a vivid, clear and crisp picture without resolution loss onto Full HD displays.
This unit can be used as a dedicated 2×2 video wall at UHD 4K@60 or 1080p with rotation, different preset or custom layouts. Bonus feature this unit can support cascading through software to allow using multiple units to create a larger videowall 3×3 with stunning clarity using the same UHD 4K@60 input for displaying content on your flat panel displays or projectors.
Key Features
- Four DVI/HDMI outputs from 640×480 to 1920×1080, 1920×1200;
- Supports HDMI/DVI input, from 640×480 to 1920×1080@60,UHD 4K@60 4:4:4, interlaced or progressive;
- HDCP compliant (HDCP 2.2 input/HDCP 1.4 output;
- Several image parameters and layouts can be saved in computers and can be loaded for later use
- Firmware upgradable for new features and technology enhancements;
- Supports IR remote control;
- Supports input rotation at 1080p resolution only;
- Software control through USB and Ethernet;
- User-selectable output settings, up to 1920×1080,1920×1200;
- Supports UHD 4K@60 input with layout only in 2×2 mode;
- Each DVI/HDMI output has an independent controllable display area;
- Supports remote control to switch 1×1, 2×2, 1×3 rotate, and 1×4 rotate mode;
- Each output can support OSD control for edge correction;
- MODEL: HDM2-PROWALL-T4K
- MODEL DESCRIPTION: 4 Screen 4K Display Video Wall Processor
- VIDEO BANDWIDTH: Input – Single link 600MHz [18Gbps] Output – DVI [Single-link 4.95Gbps] / HDMI[2.25G to 6.75Gbps]
- VIDEO SUPPORT: Input – 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)Output – 1920×1080@60 / 1920×1200@60
