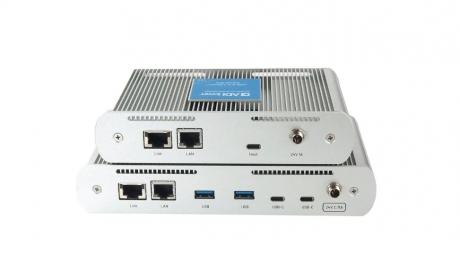

Icron Raven 3204C Pro
Product Description
Icron’s next gen extender, the Raven 3204C Pro, is the world’s first USB 3-2-1 extender over Local Area Network optimized for camera and video capture devices with Isochronous (ISO) support. It extends USB 3 (5Gbps), USB 2.0 and 1.1 devices from a host computer across a 10GbE LAN or a point-to-point CAT 6a/7 connection. The Raven 3204C Pro delivers the same exceptional performance as the Raven 3104 Pro, in a smaller, lighter design, with USB-C ports available for the host and extended devices.
Extend ISO USB cameras, sound bars, hubs and other USB-C or USB-A devices past the standard USB 3 cable (1.8m/6ft) limitation to a PC or laptop across the conference room or to an IT closet with standard CATx cabling.
Key Features
- Supports all USB 3, 2, and 1.1 devices simultaneously up to 5Gbps (shared)
- Extends USB 3-2-1 up to 200m across a 10GbE LAN switch or 100m though a single CAT 6a/7 cable
- Power the LEX (Local Extender) using the USB-C connection to the host*
- The REX (Remote Extender) includes 2 USB-C ports and 2 USB-A ports: Delivers 3A at each USB-C port and 1.2A at each USB-A port
- Convenient ‘Firmware Upgrade over Network’ capability saves time and reduces maintenance costs
- 1Gb Ethernet pass-through eliminates extra cable runs for simplified installations
- Compatible with all major UC conferencing applications
- Supports all USB transaction types (Control, Interrupt, Bulk, and Isochronous)
- USB Connectors (Local Extender): 1x USB-C Receptacle
- USB Connectors (Remote Extender): 2x USB-C Receptacles; 2x USB-A Receptacles
- Range: Up to 100m (330 ft) over CAT 6a/7
- Available Current at REX Supplies 3A (15W) per USB-C port and 1.2A (6W) per USB-A port
- Certifications: FCC, CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1
- Support Warranty: 2-year
