Rose Electronics CrystalLink USB3.1 Fiber Dual Port

Get a Quote
Manufacturer
Produced In
USA
Download Rose Electronics CrystalLink USB3.1 Fiber Dual Port

Product Description

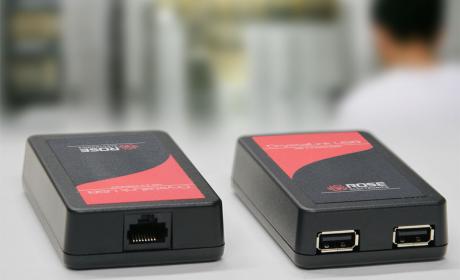

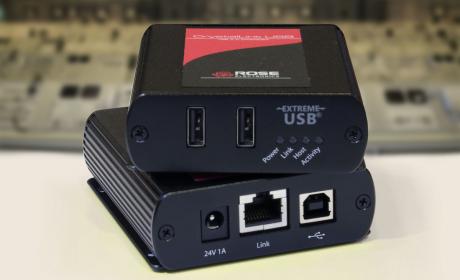

The CrystalLink USB 3.0 extender is a professional and industrial grade extender, ideally suited for the remote and secure operation of advanced digital USB 3.0 Vision cameras up to 330ft (100m). Other USB 3.0 devices can be remotely located using the CrystalLink USB 3.0 extender, at a distance of up to 50 meters.

The extender must be connected to a USB 3.0 host port and the camera or other remote devices must be USB 3.0 compliant.

Key Features

  • Extends USB3.1 devices beyond the standard 3m cable limit for USB3.1 peripherals, up to 330ft(100m)
  • Uncompromised throughput of USB3.1 gen1 rate of 5Gbps
  • Integrated 2-port hub provides support for two different USB3.1 peripherals in industrial environments
  • Uses standard 50/125µm multi-mode fiber cable terminated with one duplex LC type connector
  • Fiber cable ensures high-speed transmission, electrical isolation, high reliability, and transmission security
  • Secure USB device connection using USB and power locking connectors
  • Works with AIA USB3 Vision compliant devices
  • Plug-and-Play installation: no configuration, driver installation, or set-up required
  • Supports all major operating systems: Windows, Mac OS X, and Linux
  • The receiver unit requires a 24VDC power adapter (included), the transmitter unit is USB interface powered

Product Code

Product Name

Add to Basket

Rose Electronics CrystalLink USB3.1 Fiber Dual Port
CLK-2U3FMB-100M
USB 3.0 Fiber Extender, complete kit. transmitter, receiver, and 24VDC power adapter (RX unit)

RM-UD/CLKUSB
Shelf, wall or under desk bracket
