ADDERLink INFINITY 4001

Get a Quote
Manufacturer
Produced In
United Kingdom
Download ADDERLink INFINITY 4001 Transmitter Datasheet
Download ADDERLink INFINITY 4001 Receiver Datasheet

Product Description

The ADDERLink® INFINITY 4001 (ALIF4001) is a high performance IP KVM extender that forms part of the ALIF matrix solution.

This enables the relocation of critical computing hardware into a secure and temperature controlled environment away from the user work station; while maintaining a pixel-perfect desktop experience

Key Features

  • 5K Resolutions and High Frame Rate Supported - The ALIF4001  can deliver two 5K video resolutions and ultra-wide video resolutions (5120x1440@60Hz or 5120x2880@30Hz) or higher refresh rates of up to 240Hz (HD@240Hz) over a single IP connection.
  • Perfect Digital Video, Real-Time Control - Using a spatially-lossless encoding system, with 1:1 pixel mapping, the ALIF4001 provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.
  • 10-bit Per Color and HDR10 - The ALIF4001 allows greater color depth of 10 bits per color (or 30 bits per pixel) and supports both SDR10 and HDR10.
  • Multigigabit Ethernet Support - The ALIF4001 supports 1 and 10GbE over fiber via the SFP slots along with Multirate (1/2.5/5/10) GbE. This enables premium video performance over standard CAT6 cable up to 100m.

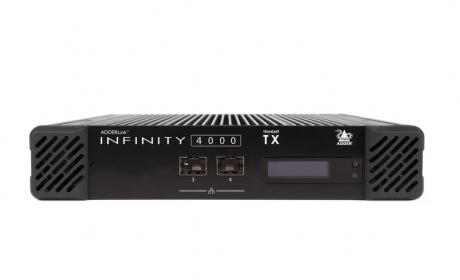

  • Flexible and Scalable Extender or Switch - Each ALIF4000 series unit can be configured as a simple extender or self-managed distributed KVM switch. Each receiver can see up to 16 sources and rapidly switch between them.
  • ADDERLink® INFINITY Matrix - With the addition of the ADDERLink® INFINITY management system (AIM), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.
  • USB2.0 for Fast Switching - Allows fast switching speeds plus supports USB devices including graphics tablets, jog shuttles, joysticks and 3D explorers. The system can also disable mass storage devices, so there is no need to physically block USB ports.
  • USB 2.0 High Speed Support - Plug and play support for USB devices that use isochronous communication such as USB microphones, headsets, speakers, web cams or compound devices like some keyboards which include the above features.
  • Multi-channel Digital Audio Support - Up to eight channels of digital audio via DisplayPort™ are supported to provide a high-quality immersive sound experience. The systems also supports bi-directional stereo analog audio (line in/line out) and headsets and microphones.
  • Full Touchscreen Control - Dual touchscreen support including on-screen keyboard and floating launch button with configurable size which can be positioned anywhere on the screen.
  • EDID Management - Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration. The EDID can also be fixed by the ALIF transmitter.
  • Redundant Network Operation - The units support network teaming allowing for full network redundancy and increased resilience for mission-critical applications.
  • Plug and Play - ALIF devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.
  • Onboard Diagnostics Tools - Diagnostics tool maximizes uptime and assists with technical support enquiries by allowing the customer to troubleshoot network issues directly from the unit.

Product Code

Product Name

Add to Basket

ADDERLink INFINITY 4001
ALIF4001T
ADDERLink INFINITY 4001 Transmitter

ALIF4001R
ADDERLink INFINITY 4001 Receiver
