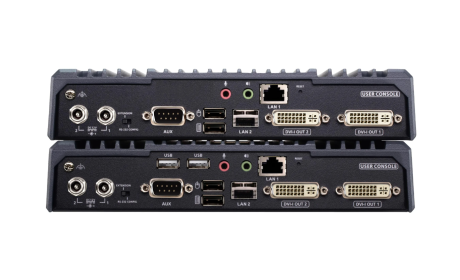

Aten KE6948A KVM over IP Extender
Product Description

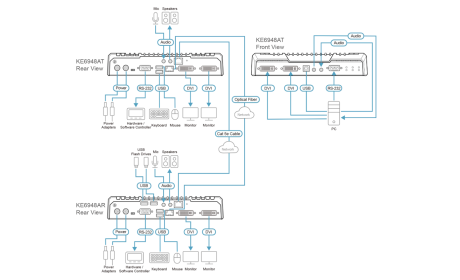

The KE6948A system consists of a high-performance IP-based transmitter (KE6948AT) connected to the computer and a receiver (KE6948AR) that provides console access from a separate location. It enables remote access via USB consoles (keyboard, mouse, and DVI monitor) over an intranet, allowing systems to be placed in secure, temperature-controlled environments away from users’ workstations, with support for lossless, zero latency video resolution up to 1920 × 1200 @ 60 Hz.
Key Features
- DNV-certified for maritime applications, including ships, offshore platforms, and high-speed, light craft
- Certified to meet IEC 60945 and IACS UR E10 international marine test specifications
- Eco-friendly powder coating process – eliminates hazardous emissions and reduces waste during manufacturing
- Advanced processor supports lossless and zero-latency video transmission up to 1920 × 1200 @ 60Hz; 8-bit RGB (24-bit total color)
- Supports power and network failover – dual DC jacks for power redundancy; 1 RJ-45 and 1 SFP fiber ports for network failover
- Centralized management via KVM over IP Matrix Manager (CCKM) allows users to easily administrator all KE devices with intuitive web-based GUI
- Secure data transmission – AES 128-bit encryption to secure all data before transmitted over a network and decrypts the data on the receiver
- USB storage transmission mode enhances data transmission performance, ideally for file transfer, OS patching, and software installation and diagnostic testing
- Video Wall Support – supports multiple video walls with up to 12 × 12 (144 displays) per layout
Product Code
Product Name
Add to Basket
Aten KE6948A KVM over IP Extender
KE6948A
Rugged DVI-I Dual-Display KVM over IP Extender
