Aten KE6948AR KVM over IP Receiver
Product Description
The ATEN KE6948A is an industrial-grade KVM over IP Extender DNV-certified to IEC 60945 and IACS E10 standards, specifically engineered for mission-critical maritime control rooms and data centers. It delivers secure, zero-latency remote access to computer systems, ensuring uninterrupted monitoring and control even under the most demanding conditions.

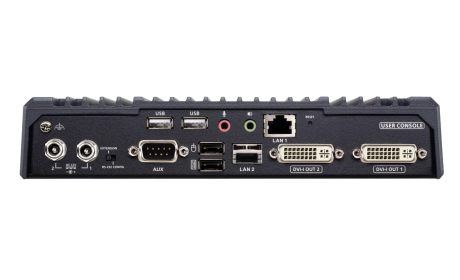

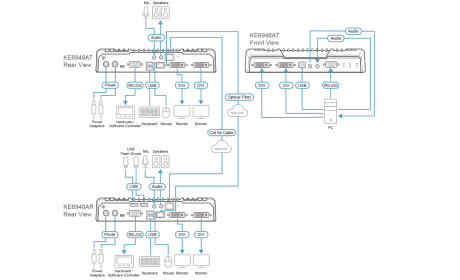

The KE6948A system consists of a high-performance IP-based transmitter (KE6948AT) connected to the computer and a receiver (KE6948AR) that provides console access from a separate location. It enables remote access via USB consoles (keyboard, mouse, and DVI monitor) over an intranet, allowing systems to be placed in secure, temperature-controlled environments away from users’ workstations, with support for lossless, zero latency video resolution up to 1920 × 1200 @ 60 Hz.
Key Features
- System Architecture for Remote Management: The KE6948A system consists of a high-performance IP-based transmitter (KE6948AT) connected to the computer and a receiver (KE6948AR) that provides console access from a separate location.
- Flexible Connectivity and Long-Distance: Extension Equipped with both RJ-45 ports and SFP slots, the KE6948A can connect directly or via a LAN using copper or fiber cabling
- Scalable Deployment and Matrix Integration: As an IP-based solution, the KE6948A is highly versatile. It can function in point-to-point, point-to-multipoint, or multipoint-to-point configurations.
- Centralized Management: Implementing the CCKM software unlocks advanced administrative features. This includes auto-detection of all KE devices on a subnet for fast installation, as well as centralized authentication and authorization. Administrators can easily define, switch, and share different connection types across the network
- Secure Access and Data Protection: Security is a priority, with support for AES 128-bit encryption and remote authentication via RADIUS, LDAP, or AD.
