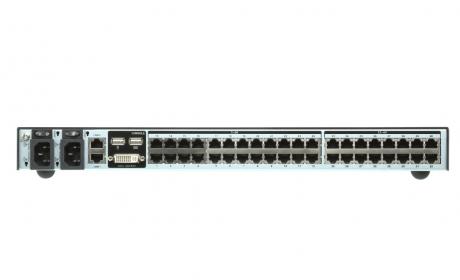

Aten KN2140VA / KN4140VA Multi-Interface Cat 5 KVM over IP Switch
Product Description
The KN2140VA / KN4140VA are ATEN’s 4th generation of KVM over IP switches, which feature superior video quality with HD resolutions up to 1920 x 1200, FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the normal speed.
The KN Series provides a local console and remote over IP access for users to monitor and access their entire data center over a network.
Exclusive KN Series Features:
• High-grade security – supports FIPS 140-2 level 1 security standards
• 2x faster virtual media transmission speeds
• Advanced FPGA graphics processor with HD resolutions up to 1920 x 1200
With dual on-board NICs and dual power supplies, the KN Series is built for reliability that ensures 24/7 availability of remote access to all servers.
Key Features
- High Port Density – RJ-45 connectors for up to 40 ports in 1U housing
- Two 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
- Audio enabled
- Dual Power Supply
- High Video Resolutions – up to 1920 x 1200 @ 60 Hz (50m) with 24-bit color depth at the switch’s local console and on remote displays
- Critical system event notification via SMTP email; SNMP trap and Syslog support
- Customizable events notification
- Adapter ID Function – stores port information, allowing administrators to relocate servers to different ports without having to re-configure adapters or switches
- IPv6 capable
- ATEN Exclusive Panel ArrayTM Mode – monitor all ports in a grid display of all desktops at both the local and remote screen
- Keyboard/Mouse Broadcast – keyboard and mouse signals can be duplicated across all servers at once
- Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization
- Remote authentication support: RADIUS, LDAP, LDAPS and Microsoft Active Directory
- Supports IP/MAC address filtering
- Supports DVD/CD drives, USB mass storage devices, hard drives and ISO images
