Aten RCMDVI00BT / RCMDVI40BT / RCMDVI50T KVM over IP Transmitter with Remote Access
Product Description

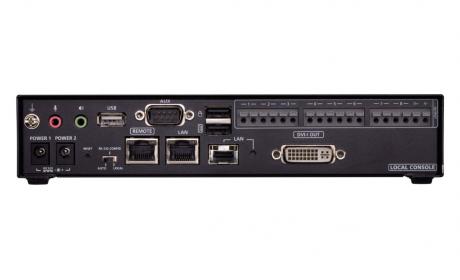

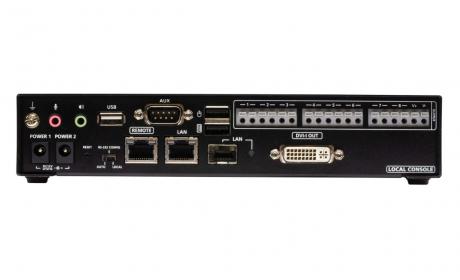

The Aten RCMDVI00BT / RCMDVI40BT / RCMDVI50T is a high performance IP-based transmitter that connects to a DVI-interfaced PC/server which can be remotely accessed via WinClient / JavaClient at a console from a separated location.

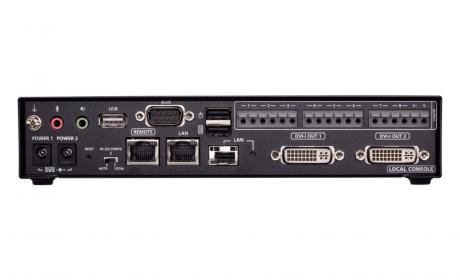

The RCMDVI00BT DVI-I Single Display KVM over IP Extender supports one DVI display while the RCMDVI40BT DVI-I Dual Display KVM over IP Extender supports two — both models provide lossless and low latency video transmissions up to 1920 x 1200 @ 60 Hz. With single display and dual link, the RCMDVI50T supports one DVI display with resolution up to 2560 x 1600 @ 60 Hz.

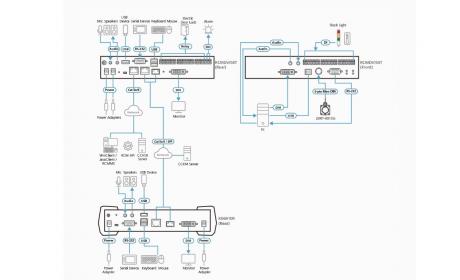

The RCM extender setup allows remote access to computer systems via a USB console (USB keyboard / mouse, DVI monitor) over intranet or the Internet, enabling users to place the managed servers / computers in secure and temperature-controlled environments, which may be isolated from users’ workstation.
Key Features
- Supports power / network failover — dual DC jacks for power redundancy and 1 RJ-45 and 1 SFP fiber ports for network failover to ensure constant availability for mission-critical applications
- Supports 1Gbps SFP fiber module expansions up to 10 km* Note: The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.
- Advance processor provides lossless and low latency video transmissions up to 1920 x 1200 @ 60 Hz (RCMDVI00BT / RCMDVI40BT); 2560 x 1600 @ 60 Hz (RCMDVI50T)
- Supports digital (DVI) or analog (VGA) video output* Note: To convert a DVI to VGA signal, a DVI-I to VGA converter is required.
- Audio Enabled — supports stereo speakers and microphone
- High speed Virtual Media Support* Note: Some of the RCMDVI00BT / RCMDVI40BT / RCMDVI50T's features may not be supported, depending on the functionality of the cascaded KVM switch. (For example, some switches do not support virtual media.)
- Auto-MDIX — automatically detects cable type
- Built-in 8kV / 15kV ESD protection and 2kV surge protection
- Fanless design for silent operations that are energy efficient
- Mounting options: - 2X-021G Dual Rack Mount Kit - 2X-031G Single Rack Mount Kit
- Includes an industrial-grade power adapter — supports operating temperature of 0 – 50 °C to ensure durability and adaptability under harsh environmental conditions
