Aten CL3708/CL3716 - 8/16-Port USB HDMI Single Rail WideScreen 18.5" LCD KVM Switch
Product Description
The ATEN CL3708NX / CL3716NX is a space-efficient 1U single-rail LCD KVM console designed for environments where space is limited, such as control rooms across various industries. Integrating an 18.5" LED-backlit widescreen monitor, full keyboard, and touchpad into a short-depth sliding housing, it provides reliable local access while maximizing valuable rack space.
Key Features
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to enhance usability in dimly lit settings
- Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Short-depth design allows users to work with your rack-mounting equipment in narrow spaces
- Console lock – enables the console drawer to remain securely locked away in position when not in use
- Superior video quality – up to 1366 x 768 @ 60 Hz
- Cascade up to 2 levels – CL3708NX controls up to 128 computers from a single console (With compatible KVM Switches: CS1798, CS17916)
- External console port – connect with a larger, higher-resolution monitor or pair with a KVM extender (CE820) to extend the console to a remote location for increased operational efficiency
- Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- Broadcast mode – allows users to send commands from the console to all computers to perform operations simultaneously
- Two level password security – only authorized users can view and control computers
- Auto Scan mode – enables continuous monitoring of user-selected computers
- Keyboard Language supports: English (UK), English (US), German (GER.), German (SWISS.), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Turkish and Traditional Chinese
- Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse
- Maximize Rack Space While Maintaining Clear Visibility: The CL3708NX / CL3716NX features a compact 1U single-rail chassis designed for shallow racks or other space-constrained environments. Its all-in-one design eliminates the need for external peripherals, and an integrated LED illumination light ensures clear visibility, supporting accurate operation even in dimly lit settings and around-the-clock use.

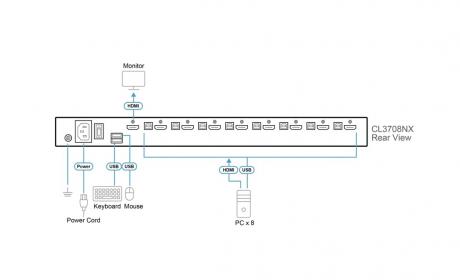

- Centralized and Flexible Multi-System Control: Supporting direct USB and HDMI connections to 8 or 16 computers, the CL3708NX / CL3716NX can be cascaded up to two levels, enabling control of up to 128 or 256 computers. An external console output via USB and HDMI allows connection to a larger, higherresolution monitor or a KVM extender (CE820) for remote console access, providing operational flexibility and efficiency.
- Reliable Video Performance for Precise Monitoring: Engineered for dependable operation, the CL3708NX / CL3716NX delivers crisp video resolutions up to 1366 × 768 @ 60 Hz. Broadcast Mode enables commands to be sent to multiple computers simultaneously, while Auto Scan Mode provides continuous monitoring of selected systems, ensuring operators can monitor multiple systems efficiently and confidently.
- Secure and Convenient System Management: Users can manage connected devices via front-panel pushbuttons, hotkeys, or a multilingual on-screen display (OSD). Two-level password protection safeguards against unauthorized access, and a dedicated, hot-pluggable USB mouse port (HID-only) on the front panel allows quick peripheral swaps, reducing downtime and improving convenience.
Product Code
Product Name
Add to Basket
Aten CL3708 / CL3716 8/16-Port USB HDMI Single Rail WideScreen 18.5" LCD KVM Switch
CL3708NX
8-Port USB HDMI Single Rail WideScreen 18.5" LCD KVM Switch
CL3716NX
16-Port USB HDMI Single Rail WideScreen 18.5" LCD KVM Switch
