Aten EC1000 Energy Box with Real-time Power Monitoring
Product Description
The EC1000 Energy Box is the latest evolution of NRGence™ - ATEN's energy intelligence solutions. It is the intelligent, cost effective solution to monitor ATEN's Energy PDUs - to ensure safe and effective energysaving power management.

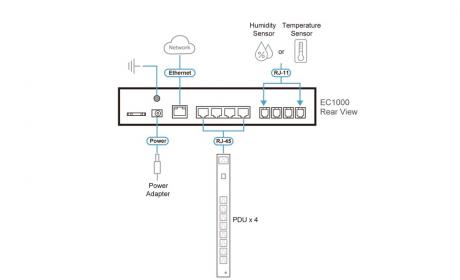

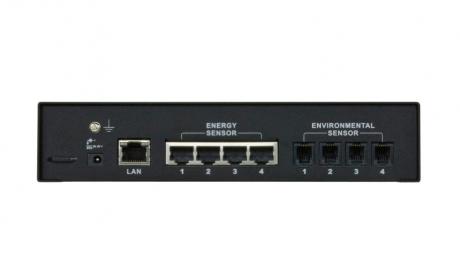

The EC1000 Energy Box has four Energy Sensor ports to connect to four Energy PDU modules and four Environment Sensor ports for external sensors to monitor environmental conditions. Each environmental sensor can provide measured readings of temperature, humidity, and differential pressure from separate areas of a data room, giving a wide range of monitoring and protection you need.
Key Features
- Space saving 1U rack mounting with front and rear mounting
- 4 RJ-45 Energy Sensor Ports to monitor four Energy PDU currents (0A to 32A per port)
- 4 RJ-11 Environment Sensor Ports to monitor temperature, humidity, and differential pressure*
- Maximum Amperage Monitor 32A@100V~240V (Energy Box)
- 3 digit 7 segment front panel LED displays current / sensor / IP address information
- Threshold monitoring for: 1.Current 2.Temperature* 3.Humidity* 4.Differential pressure*
- Threshold alerting through: 1. Local: audible alarm and LED lights 2. Remote: SMTP / SNMP trap / Syslog
- Front panel LED indicators for current, temperature*, humidity*, differential pressure*, and IP address information at the Energy Box
- Management through eco DC (Energy & DCIM Management / Web GUI) or 3rd party SNMP manager
- Supports name assignment for individual Energy PDUs
- Remote management via TCP / IP using built in 10 / 100Mbps Ethernet port
- Network Interfaces: TCP / IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T / 100Base-TX, auto sense, Ping
- Strong security features include password protection and advanced encryption technologies – utilizing 128 bit SSL
