Aten VC840

Produced In

Product Description

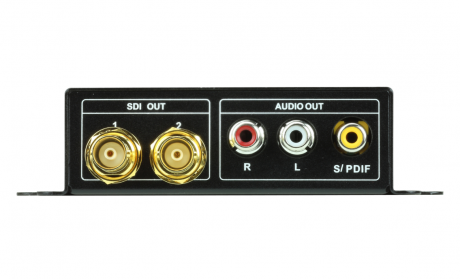

The Aten VC840 HDMI to 3G/HD/SDI converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission.

The VC840 provides 2 low jitter SDI outputs for dual display.

Key Features

  • Converts an HDMI input signal to 3G/HD/SD-SDI formats in real time while avoiding transformation loss for both audio and video signals
  • Supports additional analog stereo audio and coaxial digital audio
  • HDMI (Deep Color)
  • LED indication of power and signal status
  • Supports an SDI distance of up to 90M (3G-SDI), 150M (HD-SDI) or 300M (SD-SDI) of RG
  • Supported SDI formats:
  • SD-SDI (SMPTE 259M, up to 270Mbps)
  • HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
  • 3G-SDI (SMPTE 424M, 425M level A, up to 2.97Gbps
  • Video Support:
  • 525i@59.96, 625i@50
  • 720p@50/59.94/60
  • 1080i@50/59.94/60
  • 1080p@23.97/24/25/29.97/30/50/59.94/60
  • 2048 x 1080
  • Supports 8 audio channels @ 48kHz rate
  • Reclocking SDI signals for cascading and thus longer transmission
  • Selectable EDID settings and EDID learning mod
