Rose Electronics UltraMatrix A/V DVI
Product Description

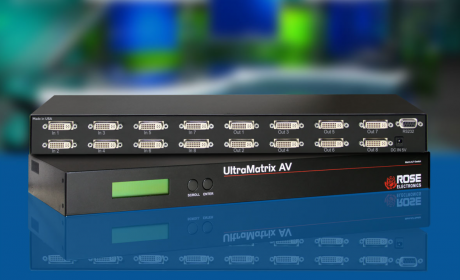

The Rose Electronics UltraMatrix AV DVI-D matrix switch is the perfect addition to new or existing installations that need to display 1 to 16 video sources to 1 to 16 remote DVI-D displays. Pick one video source and display it on 1, 2 or all monitors.
Easy front panel selection of the video source to displayed on each remote monitor. Just push a button and select the source, then select the destination port. The front panel display shows which computers are connected to the displays.
Selection can also be performed by using the provided Rose Control software that sends switching command to the unit. With one click on the cross-point, that computer's video is instantly switched to the selected DVI-D monitor. These commands are sent using the Rose Control software installed on a computer or laptop and connected to the RS232 port on the unit.
Key Features

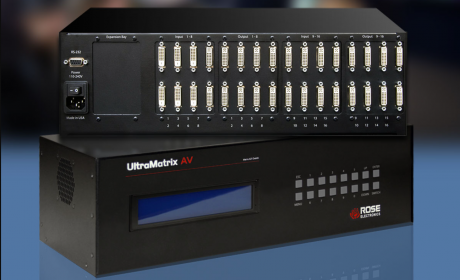

- Available models: 8 video/audio in to 8 video/audio out, 16 video/audio in to 16 video/audio out; 16 video in to 32 video out
- Select and view connection source and destination from front panel
- Switch from front panel or RS232 port using control software provided with unit
- Extends the monitor and speakers up to 50 feet from the unit
- Supports all video formats (VGA / SVGA / XGA / RGBHV / SOG)
- Video bandwidth of 200MHz
- Supports resolutions up to 1920×1200
- Save and playback up to 50 different macro routing sequences
- Add additional units to increase the number of monitors (up to 64)
- Windows based software control for quick and easy switching
- Optional Ethernet interface for control over network
