ADDERLink INFINITY 3000R
Manufacturer
Produced In
United Kingdom
Product Description
A KVM receiver which brings virtual machine (VM) access to the ADDERLink® INFINITY (ALIF) range, delivering real-time access to unlimited physical KVM data and VMs from a single human-machine interface (HMI). Seamlessly and securely switch between physical and virtual machines running on servers using either RDP, VNC, HTML5 , Horizon (Blast and PCoIP) or SSH protocols.
Key Features
- Dual-Head Digital Video, Audio, and USB2.0 over 1GbE IP Network - The ALIF3000 can deliver one 2560x1600 or two 1920x1200 video resolutions from the KVM network and can also run to UHD resolutions (3840x2160) for VDI inputs.
- Unlimited Access to Physical and Virtual Machines - Users can seamlessly take control of unlimited sources in both a virtualized and physical environment, from a single workstation using standard VDI protocols of RDP , VNC , HTML5 and SSH (Terminal).
- Perfect Digital Video, Real-Time Control - Using a spatially-lossless encoding system, with 1:1 pixel mapping, the ALIF3000 provides pixel-perfect and color accurate video with no artifacts when received from ALIF transmitters.
- Enhanced Network Flexibility - As well as the 2x 1GbE SFP ports for the normal redundant operation teaming provided by the ALIF range, a third 1GbE CATX network port is provided for VM access only where networks need to be kept separate. VM resources can be accessed via the KVM ports adding extra flexibility.
- USB 2.0 with Class Control - Supports USB devices including graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. For secure applications, the system can disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.

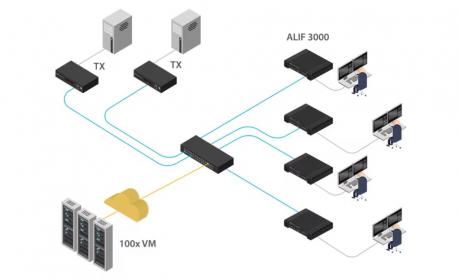

- Digital KVM Matrix - With the addition of ADDERLink INFINITY management system (AIM) you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.
- Full Backwards Compatibility - The ALIF3000 can be added to an existing ADDERLink INFINITY matrix to deliver real-time KVM and virtual machine access - with the security, reliability and flexibility benefits of traditional IP KVM solutions.
- KVM Security for VM Environments - The ALIF3000 is a closed and hardened KVM system with virtual machine access. Unauthorized software cannot be loaded onto the units without administrator approval.
- Plug and Play - The ALIF range is delivered in a zero config state so it works as soon as it is connected, without the need for drivers or software.
- Adder's USB True Emulation - USB2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers.
- Performance - Built on Intel®’s successful X-86 architecture, the ALIF3000 is a robust and resilient solution designed for use in the most challenging scenarios.
- Bi-Directional Audio - Supports bi-directional 2 channel audio , line out, headphone and microphone socket. Digital O/P available via video connectors.
Product Code
Product Name
Add to Basket
ADDERLink INFINITY 3000R
ALIF3000R
ADDERLink INFINITY 3000R Receiver
