Apantac CRESCENT 4K/UHD KVM Extender - Set 18
Product Description
KVM (UHD@60Hz) Extenders/Matrix over IP. Based on standard Gigabit Ethernet
4K UHD KVM Extenders with USB 2.0 over IP support
170 meter UHD HDMI KVM Extenders with USB 2.0 over IP support
Key Features
- Based on Gigabit Ethernet Technology (IGMP and Jumbo frame)
- Supports HDR 10/10+, HDCP 2.2/2.3, USB 2.0 over IP and AES 265 encryption
- Low latency of 17 ms for 60Hz, 20 ms for 50Hz
- Transmitter has built-in HDMI looping input
- Supports up to 170 meters point to point extension with CAT6 cable
- Supports up to 100 meters when used with a GigE switch
- Supports HDMI inputs and output signals
- Supports point to point (Unicast), point to multi-point (Multicast) for Audio/Video distribution
- Receiver has 3 USB ports that supports both HID and transparent USB (for USB storage, and tablets)
- Supports analog stereo audio in point to point mode. Both embedded HDMI as well as external stereo input
- Supports RS-232 communication between Tx and Rx
- Built-in web-page for configuration
- Connection manager software - KVM matrix control panel
- Supports resolutions up to UHD @ 60Hz
- Advanced EDID management functionality. Built-in EDID list or EDID from the display
- Built-in Scaler on the receivers
- POE Optional - Hardware option can be included at the time of order
Product Code
Product Name
Add to Basket
Apantac CRESCENT 4K/UHD KVM Extender - Set 18

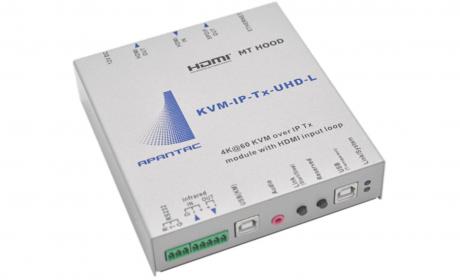

KVM-IP-Tx-UHD-L
4K@60 KVM over IP transmitter with Fiber and copper interface
KVM-IP-Rx-UHD
4K@60Hz KVM over IP receiver with Fiber and copper interface
