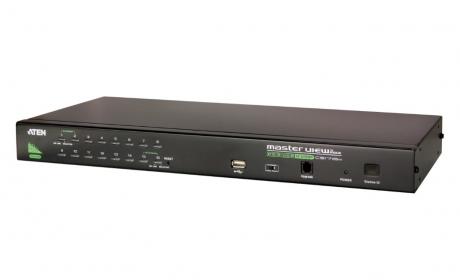

Aten CS1708A / CS1716A PS/2USB KVM Switch
Product Description
The CS1708A and CS1716A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor).

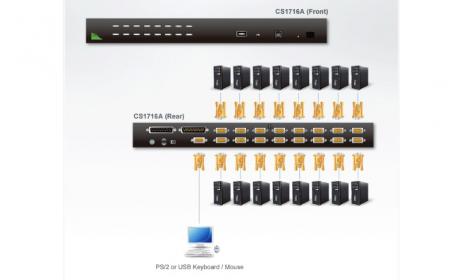

A single CS1708A or CS1716A can control up to 16 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 256 or 512 computers can all be controlled from a single keyboard-monitor-mouse console.
Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.
Key Features
- One USB-PS/2 console controls up to 8 (CS1708A ) to 16 (CS1716A) computers
- Daisy-chain up to 31 additional units - control up to 256 to 512 computers from a single console
- Front accessible USB port allows each computer to access USB peripherals* Note: The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- Multiplatform support - Windows, Linux, Mac and Sun
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
Product Code
Product Name
Add to Basket
Aten CS1708A / CS1716A PS/2USB KVM Switch
CS1708A

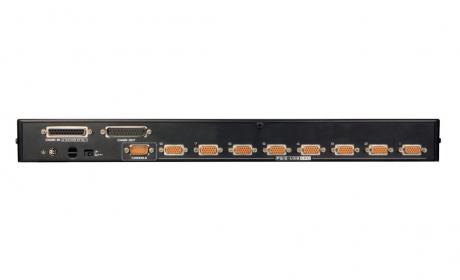

8-Port PS/2-USB VGA KVM Switch
CS1716A

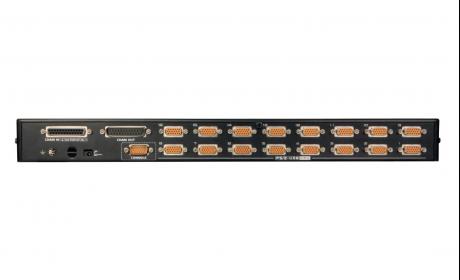

16-Port PS/2-USB VGA KVM Switch
