Smart AVI HDC-IR - IR and Power signals over CAT 5 Extender
Product Description
The HDC-IR range of products allow the extension of Infra Red control signals using single CAT5 UTP (category 5, unshielded twisted pair) cable. The HDC-IR is the first product for this application.

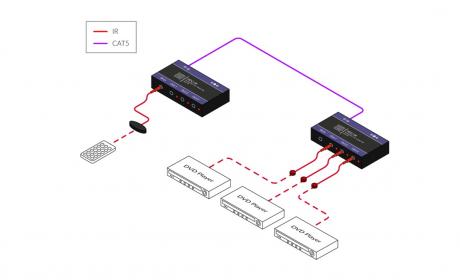

HDC-IR can be used 2 ways:
1. Enabling the remote side to control the DVD, or any other source device. (the IR eye would be connected at the remote).
2. Enabling the source side to turn off or on the remote TV/Monitor (the IR eye would be connected at the source
Key Features
- Uses easy to install, inexpensive CAT5 and Output reaches up to 1000 feet (300m)
- Sends IR and Power signals over CAT5
- Video cable compensation (automatic)
- Sends Composite Video Stereo Audio, IR and Power signals over CAT5
- Compatible with line level stereo audio signals
- Built-in lightning, power surge and transient protection
- Remote units come with buffered outputs, compact enclosure, and optional power supply for remote unit
- Fully compliant with standard modulated IR and the latest IRDA
- Fully transparent path for all products and data transfers
- Bi-directional IR
- Supports any IR Remote Control
