Smart AVI XTPRO VGA Extender
Product Description

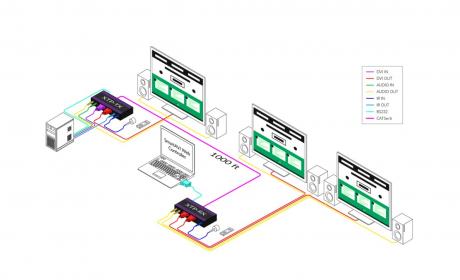

The XTPRO is a high resolution UXGA and stereo audio extender system (transmitter and receiver) designed to broadcast desktop video, stereo audio signals, IR and RS-232 over unshielded twisted pair (UTP) cabling. With RS-232 communication support the XTPRO allows users to send commands to single or multiple devices. This allows the user to change the volume, change the channel or turn on/off the display panel remotely
Key Features
- Dual-screen support
- Uses easy to install, inexpensive CAT-5/5e/6/7/8
- Each Output reaches up to 1,000 feet (300 m)
- Supports high resolutions up to 1920×1200
- HDTV compatible (720p, 1080i, 1080p)
- 300 MHz Bandwidth.
- Sends high-resolution VGA, stereo audio signals, RS232 or IR from one source to 2 locations
- Compatible with VGA, XGA, Sun, MAC and SGI
- Sync Format / Polarity Preservation
- Compatible with Line Level Stereo Audio Signals
- High ground loop immunity
- Built-in power surge and transient protection
- Designated trimmer in the remote unit to compensate for cable length./li>
- Compact Metal Case Enclosure
- External power supply
- RS-232 communication support to single or multiple displays and IR command to single or multiple displays
Product Code
Product Name
Add to Basket
Smart AVI XTPRO VGA Extender
XTPROS
UXGA/Audio/RS-232/IR Point-to-Point CAT5 Extender
XTP-TXS
UXGA/Audio/RS-232/IR CAT5 Transmitter
XTP-RXS
UXGA/Audio/RS-232/IR CAT5 Receiver
