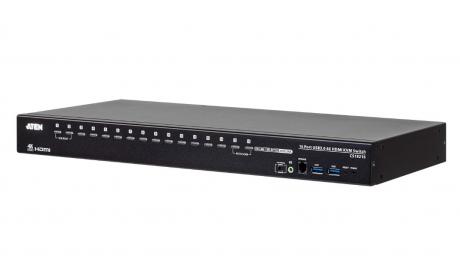

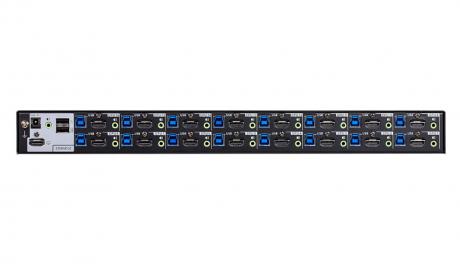

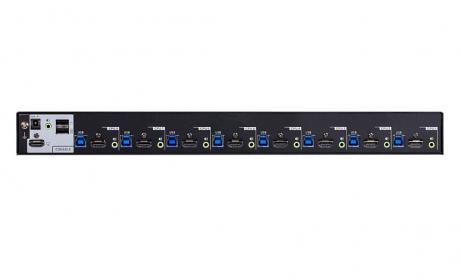

Aten CS18208 / CS18216 - 8/16-Port USB 3.0 4K HDMI KVM Switch
Product Description
The ATEN CS18208 / CS18216 8/16-Port USB 3.0 4K HDMI KVM Switch can effectively access and control up to 8/16 HDMI computers from a single USB keyboard, USB mouse, and HDMI monitor console. The CS18208 / CS18216 supports high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.
To meet the needs of easy expansion and flexibility, the CS18208 / CS18216 can control up to 512 / 256 computers by cascading to three / two levels for a single console.
Furthermore, the CS18208 / CS18216 supports multi-display function by stacking up to eight CS18208 / CS18216 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment.
Key Features
- One USB console controls up to 8 (CS18208) or 16 (CS18216) HDMI interface computers and two additional USB 3.1 Gen 1 peripheral devices
- Cascadable to three levels — controls up to 512 computers (CS18208)1 ; or to two levels — up to 256 computers (CS18216)
- Multi-Display feature — stacks up to eight CS18208 / CS18216 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
- Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Audio enabled — full bass response provides a rich experience for 2.1 channel stereo sound
- Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
- Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
- Supports hot-plugging
