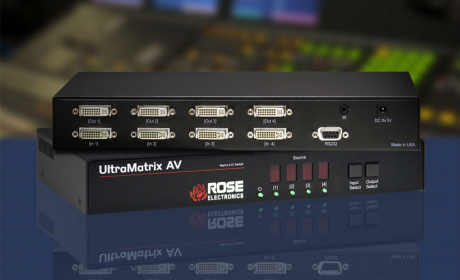

Rose Electronics UltraMatrix AV Pro Matrix Switch

The UltraMatrix AV Pro is a high-performance audio and video cross-point switch connecting any input to any output, including seamless switching from older legacy video formats due to built-in scaling and conversion.

The modular chassis accepts 4-port input and output cards in a variety of AV connections, including HDMI, DVI, VGA, 3G-SDI, HDBaseT, and fiber. 4K UHD resolution is supported with HDMI and HDBaseT cards. HDBaseT extenders are used with the HDBaseT input and output cards to transmit HDMI, IR, RS232, Ethernet, and power up to 233 ft. (70 m) over a single CATx cable. Fiber extenders are used with fiber I/O cards to extend HDMI and audio 984 ft. (300 m) over multi-mode fiber cable, or 1.2 miles (2 km) over single-mode fiber cable. The product is HDCP compliant with flexible EDID control. Audio can be transmitted together or separately from each video signal.

Configuration and control of the switch can be managed by the front panel, IR controller, Ethernet network, and RS-232 serial port. The system is scalable with chassis models available in 8x8, 16x16, 32x32, 64x64, and 144x144. This product is ideal for many applications, such as post production, control centers, presentation venues, medical, government, retail, and residential environments.
